RAW 4x4 2" 40mm NITROMAX Heavy Duty Lift Kit - Toyota N80 Hilux (2015-Current)

Make/Model:

• To suit Toyota N80 Hilux (2015-Current)

• All 4X4 variants
• Does not suit Rogue Wide Body

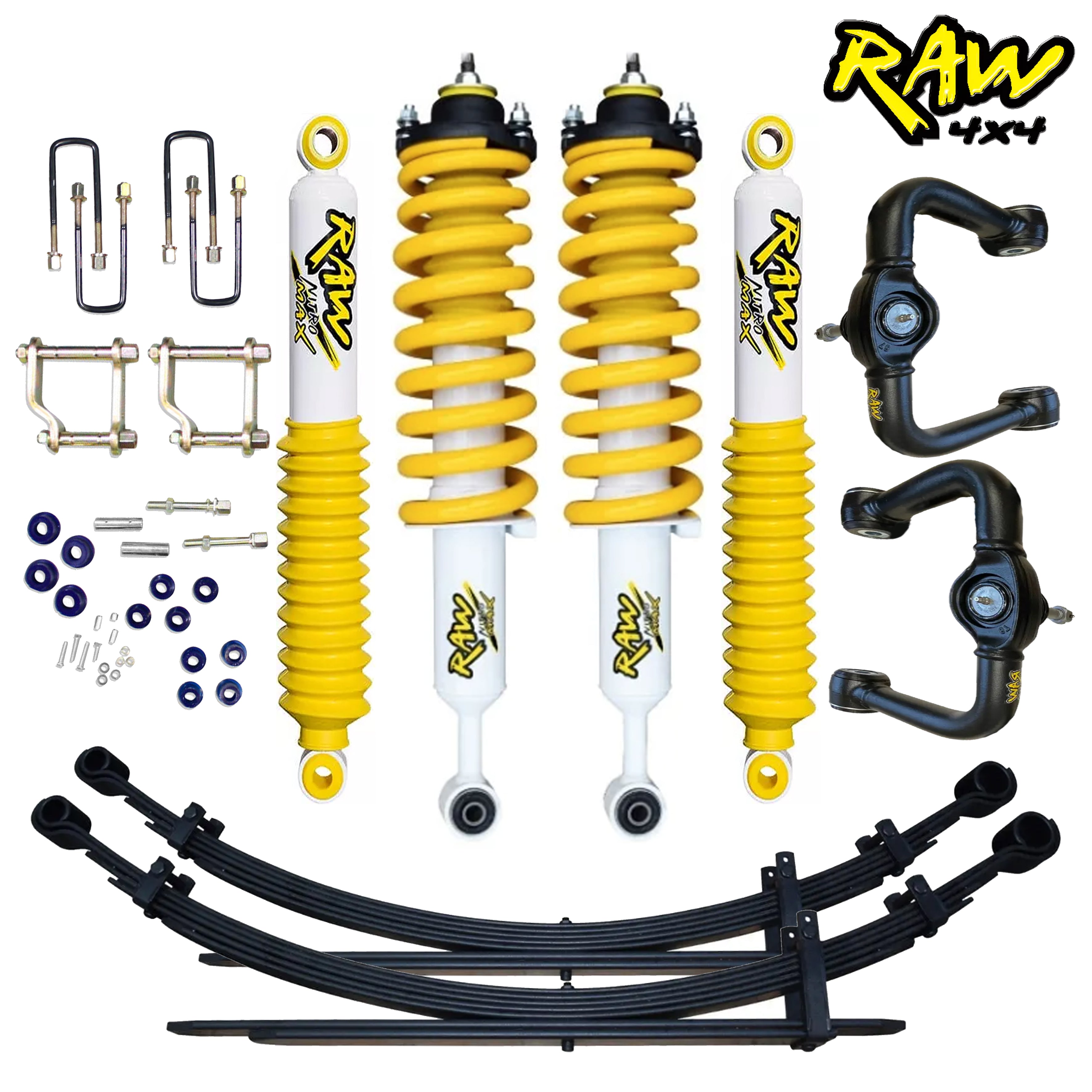

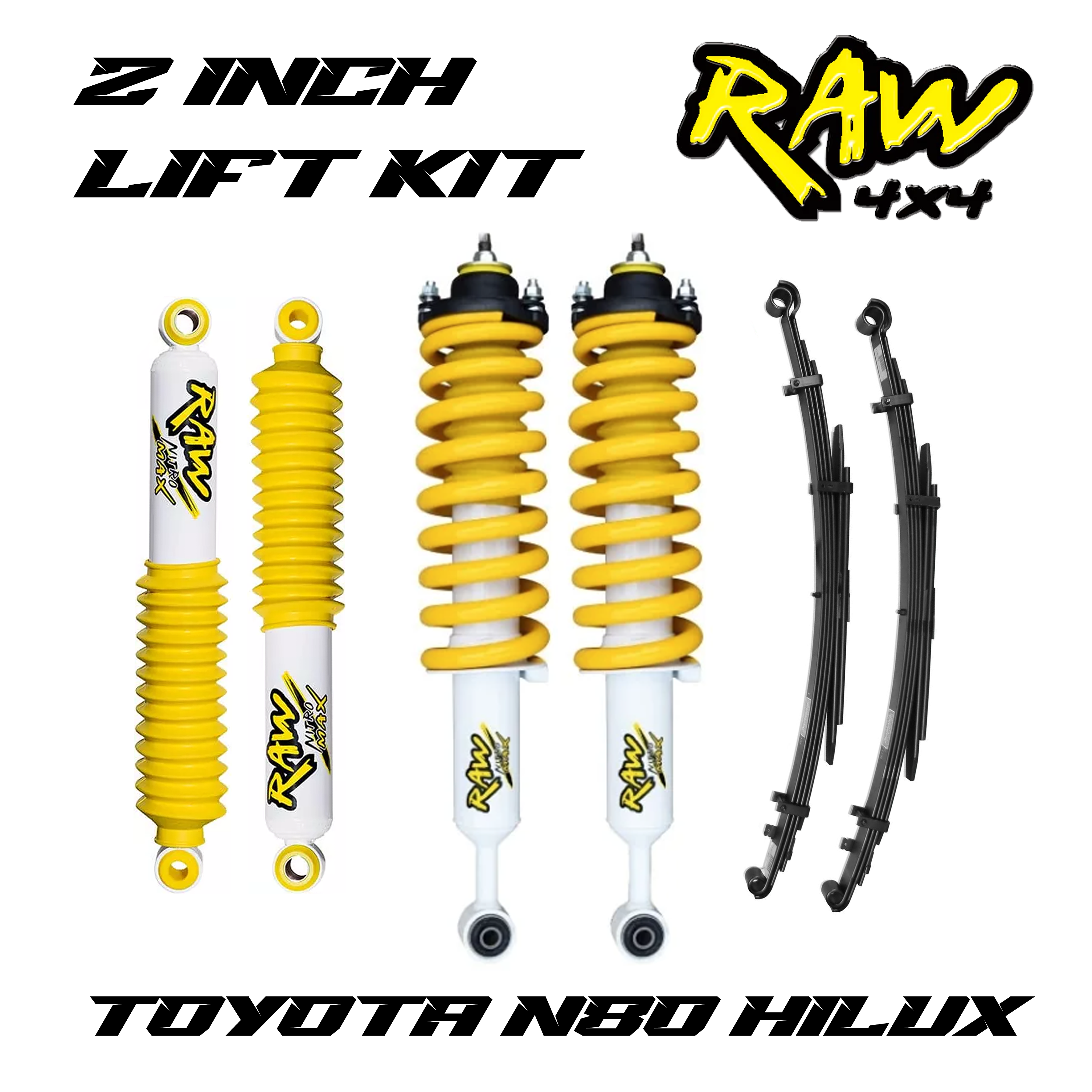

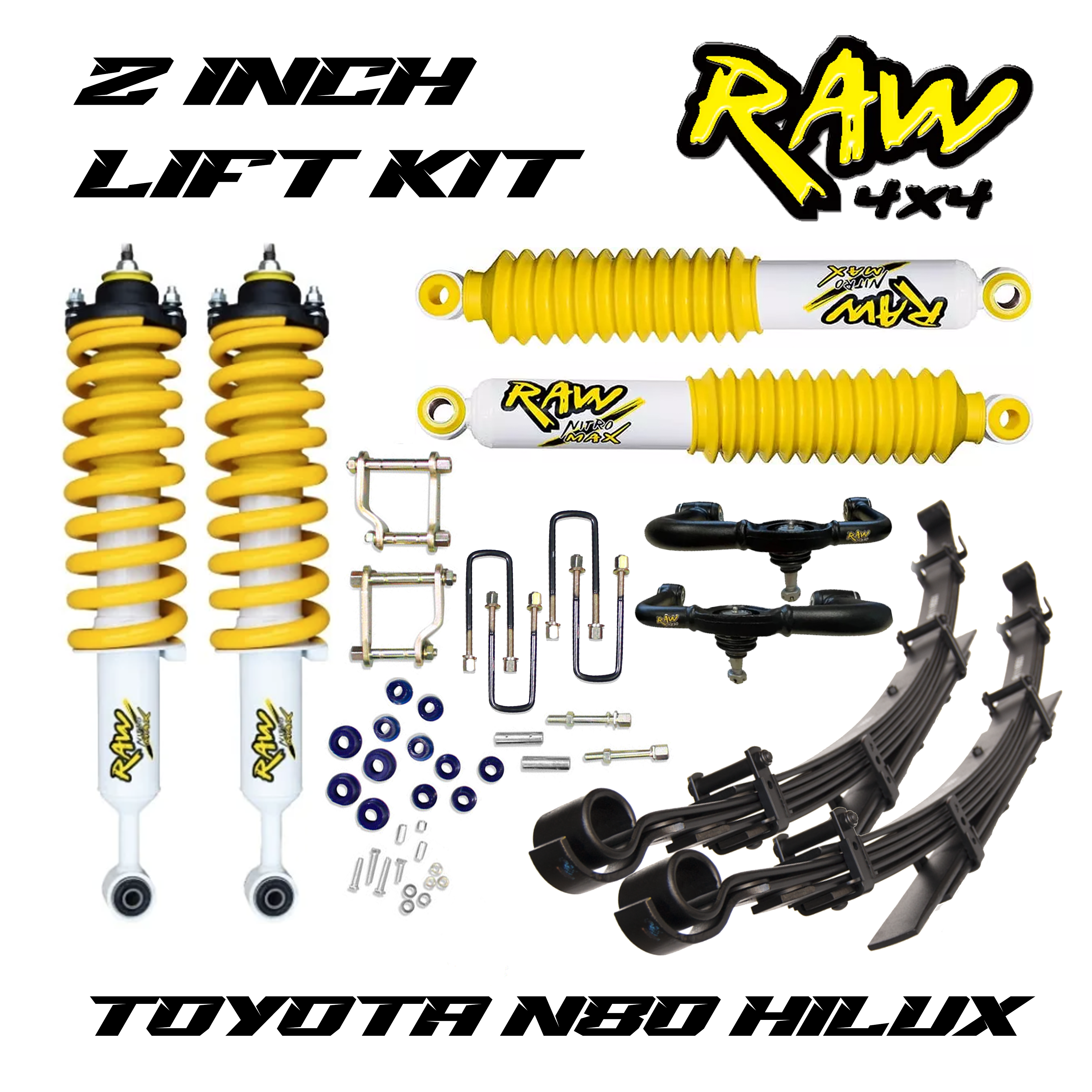

Kit Includes:

• Front Preassembled 40mm Coils & Struts (NitroMax 45mm Big Bore Heavy Duty Shock Absorber) x 2
  • 0-50kg Constant Load [NM964-2463]
  • 50-80kg Constant Load [NM964-2298]
  • 80-120kg Constant Load [NM964-2464]

• Rear 40-50mm NitroMax 45mm Big Bore Heavy Duty Shock Absorber x 2 [NM965]
• Rear 40-50mm Leaf Springs x 2
  • 0-100kg Constant Load [RL960]
  • 100-200kg Constant Load [RL966]
  • 200-400kg Constant Load [RL967]
  • 550-1000kg Constant Load [RL968]

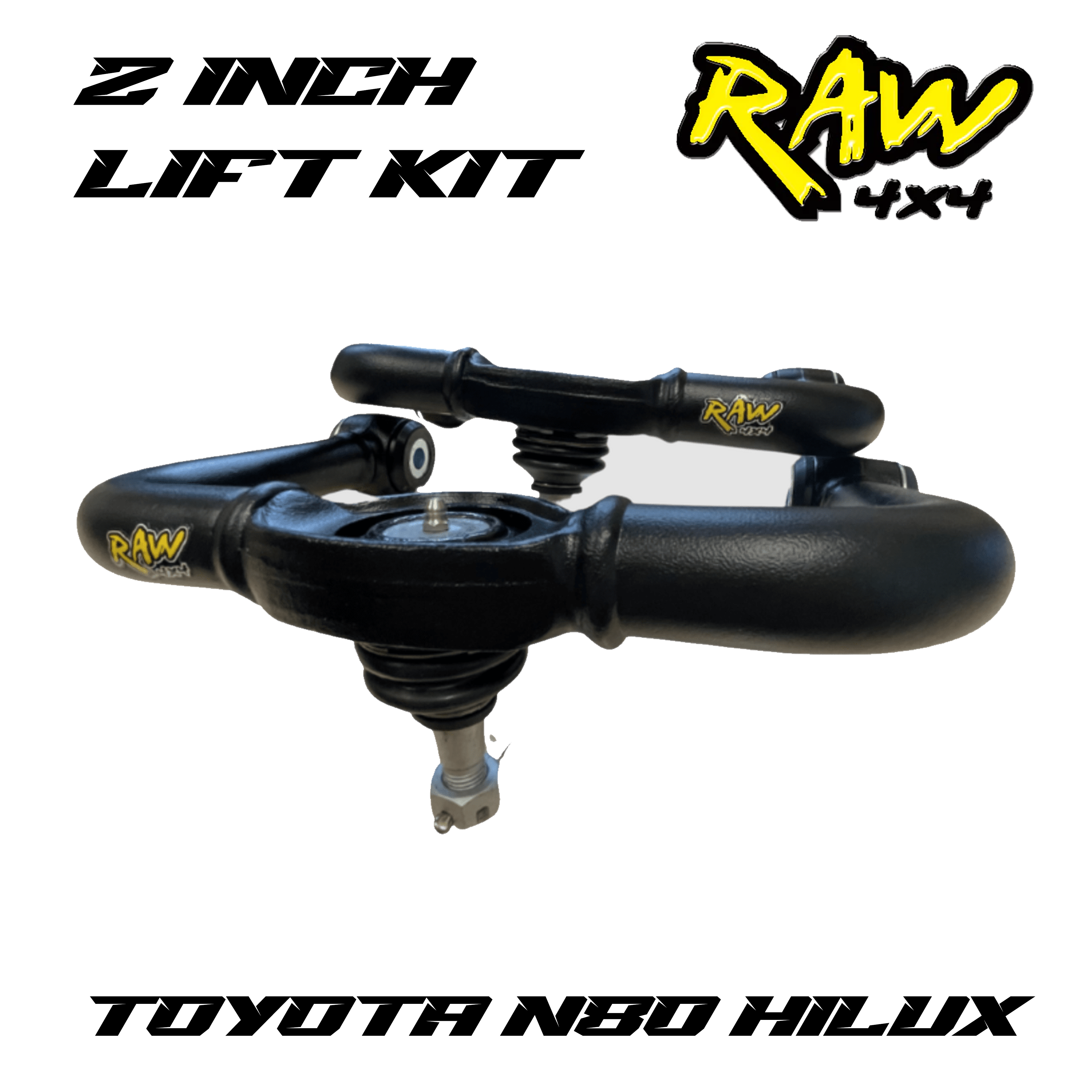

• OPTIONAL (Highly Advise Upgrading) - 3" 2.5 Degree High Clearance Front Upper Control Arms x 2 [RCA350]

• Front Diff Relocation Kit (Diff Drop) x 1 [M1105]
• Bush, Shackle, Pin, U-Bolt Kit x 1 [BSK1010 / BSK1034]
• Brake Hose Extension Kit x 1 [M998]

PLEASE NOTE: We do also offer installation of all of our listed lift kits + more! Make sure to contact us on (03) 9761 4111 or via email info@highrollers4x4.com for quotes or bookings!

NitroMax - Extra Heavy Duty Shocks & Struts:

Specifically designed for heavy coil sprung and torsion bar vehicles, Nitro Max uses a proven truck shock absorber design with highly tuned valving for 4 x 4 applications carrying heavy loads and travel demanding terrain. Recommended for vehicles used in mining, long distance touring, towing and heavy duty applications.

Features:

• Strong construction build to last
• 360° welds with one piece eye rings and machine welded end caps for increased strength and durability
• Deep penetrating structural welds for stronger construction
• Body and shield made of strong steel construction with extra thick tube for added endurance and strength

Engineered for Performance:

NitroMax achieve enhanced performance and longevity through:

• Larger external body size
• Low pressure nitrogen gas charged to resist fade
• Improved dampening
• High temperature oil
• Seals resistant to elevated temperatures
• Hydraulic stop at fully extended

RAW 4x4 Coil Springs:

A set of RAW 4x4 coil springs will significantly improve the ability of your 4x4 to carry this additional weight whilst enhancing the vehicles performance in terms of stability, load carrying and towing capabilities.

• X5K high strength steel wire with superior resistance to sag
• Formed on precision mandrels with state of the art heat treatment
• Shot peened, fully scragged and load tested
• Durable powder coated finish
• Made in Australia

RAW 4x4 Leaf Springs:

Raw 4×4 leaf springs have been designed to achieve the best possible ride for your 4×4 whilst increasing your ride height, load carrying ability and improving overall suspension travel.

• Made from high quality steel - Military wrapped eyes for extra safety in the instance of a main leaf breaking
• Diamond Cut - Drawn tapered & diamond cut leafs to aid in load distribution over a larger surface area
• Anti Friction Liners - Scrag testing ensures the spring takes a permanent set, reducing the chances of the leafs sagging
• Inter leaf anti friction liners between the springs leafs to reduce friction and improve ride comfort (Excludes some part numbers)
• High strength alignment clips with nylon insulators to reduce wear and noise. Nyloc nuts are used to secure the clips to prevent loosening which can lead to tyre damage

Please Note:

• All lift heights stated are estimated lift heights and can result in slight changes of height depending on the weight and set up of your vehicle

• As with most lift kits online we recommend to check with your installer pre-purchase to make sure if you require extra parts
• Each state has it's own laws regarding legality of lift height for on-road use - we recommend that you check your state laws before purchasing if you plan on using your vehicle on road
• Photos are for illustration purposes only and may vary
